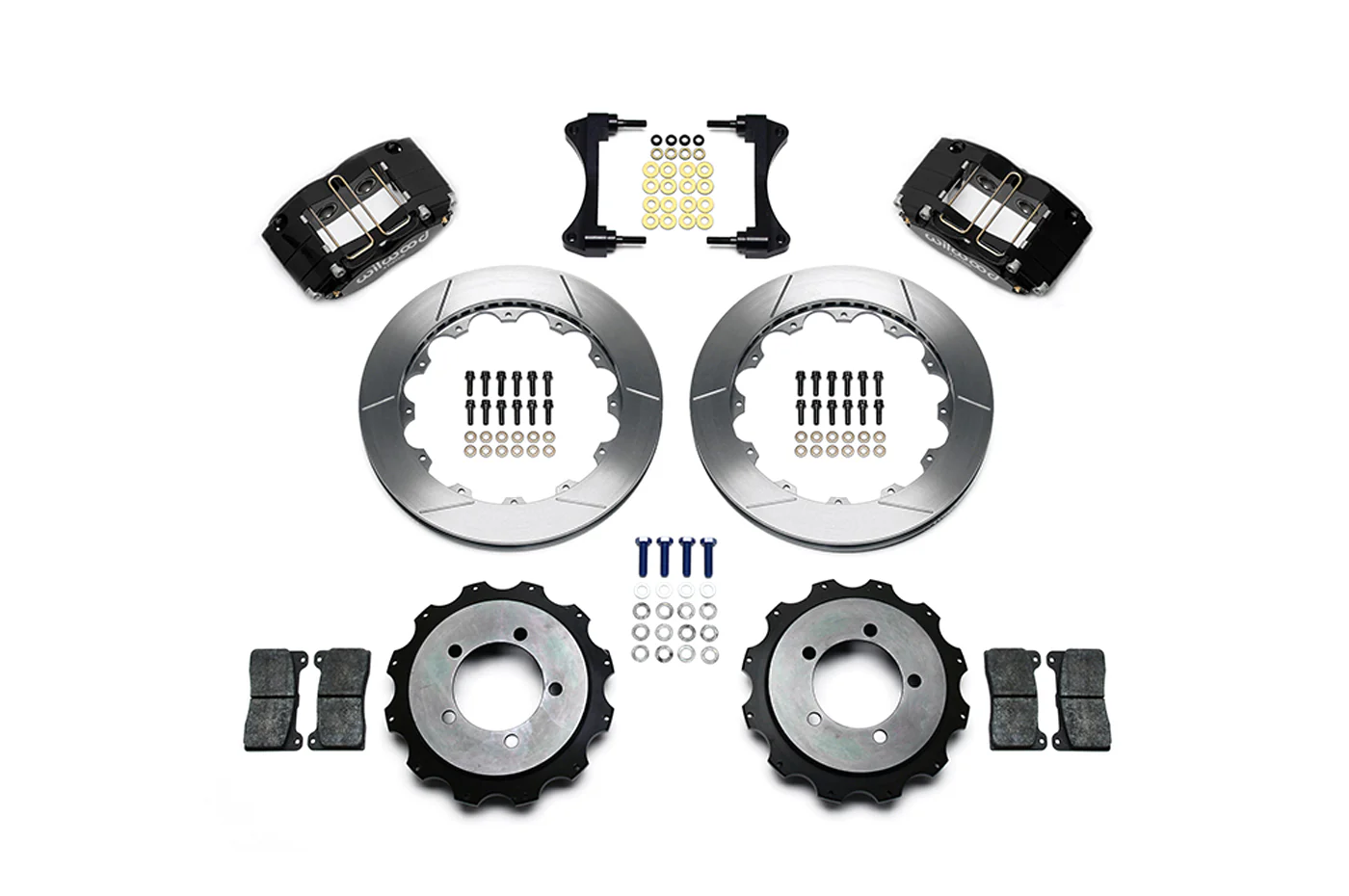

Wilwood Dynapro Radial big rear brake kit for Evo 7/8/9 is available with red or black calipers and your choice of slotted or slotted/drilled rotors. Requires 17"+ wheels. Please note, you will also need the brake lines linked below which are sold separately.

Vehicle Fitment:
• 2001-2006 Evolution VII VIII IX

Required for Install:
Wilwood Rear Brake Lines (220-9288) (sold separately)

Installation:
PDF Install Instructions

Quick Specs:
• 17" minimum wheel diameter required
• This brake kit may fit 17-inch wheels. *Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel
• Rotor Diameter 12.88" (vs 11.81" stock)
• Rotor Thickness 1.10"
• 4 Piston Calipers

Included/Replacement Part Numbers:
All parts of the brake kits are available for maintenance or replacement.
• Caliper Mounting Brackets (250-9600)
• BP-10 Brake Pads (150-8946K)
• Bolt, M10-1.5 x 35mm, Hex Head (230-9664)
• Washer, 10mm I.D. x 18mm O.D. x 1.6mm Thick (240-17663)
• Shim, .406 I.D. x .750 O.D. x .015" Thick (240-6266)
• Hat, 5 x 4.50, 1.32 Offset, 12 x 8.75" Bolt Circle (170-9599)
• Washer, .265 I.D. x .500 O.D. x .063" Thick (240-11240)
• Bolt, 1/4-28 x .750" Long, 12 Point (230-6738)
• Nut, 3/8-24, Self-Locking, 12 Point (230-9183)
• Washer, .391 I.D. x .625 O.D. x .063" Thick (240-10190)
• Stud, 3/8-16 x 3/8-24 x 2.50" long (pre-installed in bracket) (230-9078)
• Shim, .035" Thick (240-1159)
• Calipers (see below)
• Rotors (see below)

LH vs RH?
Left Hand and Right Hand is determined by driver position. From the driver seat, which side is it on?
