Darton Dry Sleeves for 2JZ-GTE Supra (300-055-SF/DF)

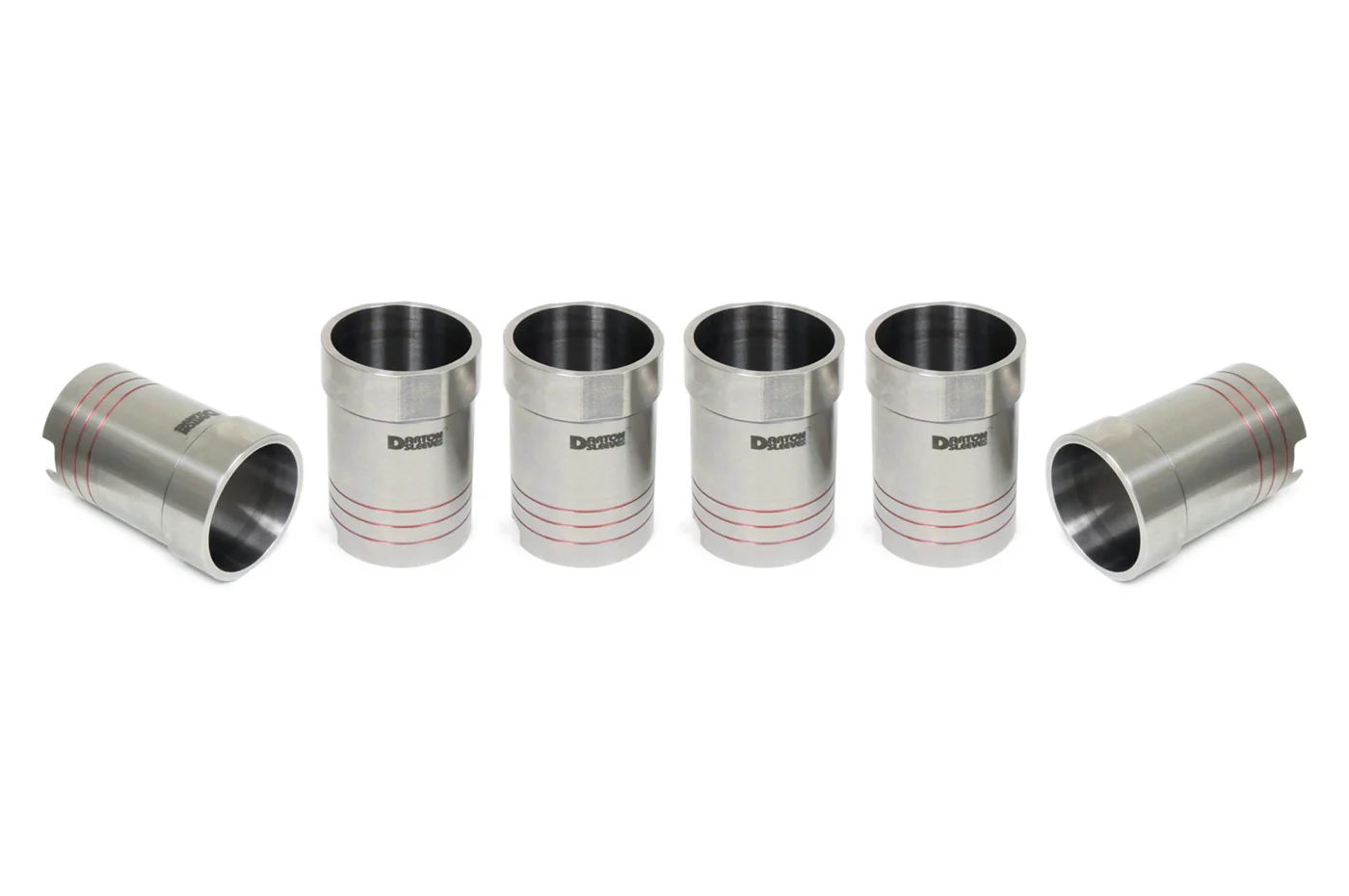

Darton Dry Iron Sleeves for the 2JZ-GTE Toyota Supra replace your factory cylinder liners with a stronger, more durable and longer lasting surface that can hold more power and may be bored further than stock.
A "Dry Sleeve" means that the sleeve does not contain water or coolant passages bored through the top flange. This solid design provides a more rigid structure to prevent warping and sleeve expansion.
Darton sleeves must be finished at the machine shop and honed to the exact specs of the pistons going into them.
Vehicle Fitment:
2JZ-GTE Toyota
1993-1998 Supra TT MK4 MKIV
Includes:
6 Sleeves
(2) SF = Single Flat (300-055-SF)
(4) DF = Double Flat (300-055-DF)
The two sleeves for cylinder 1 & 6 are a "SF" meaning they have one side that is flat. Cylinder 2/3/4/5 in the center are a "DF" with double flat sides so they can all be siamesed together.
A "Dry Sleeve" means that the sleeve does not contain water or coolant passages bored through the top flange. This solid design provides a more rigid structure to prevent warping and sleeve expansion.
Darton sleeves must be finished at the machine shop and honed to the exact specs of the pistons going into them.
Vehicle Fitment:
2JZ-GTE Toyota
1993-1998 Supra TT MK4 MKIV
Includes:
6 Sleeves
(2) SF = Single Flat (300-055-SF)
(4) DF = Double Flat (300-055-DF)
The two sleeves for cylinder 1 & 6 are a "SF" meaning they have one side that is flat. Cylinder 2/3/4/5 in the center are a "DF" with double flat sides so they can all be siamesed together.
| Part Number: | 300-055-SF 300-055-DF |
| Bore | 3.325 |
| OD: | 3.560 |
| OD 2: | 3.550 |
| Wall: | 0.117 |
| Length: | 5.600 |
| Flange Thickness: | 1.250 |
| Flange Diameter: | 3.800 |
| Flats: | 3.660 |
| Application: | 2JZ-GTE 85mm-87mm |
