Radium Electrical Bulkhead Stud Kit (Pack of 6) (17-0048)

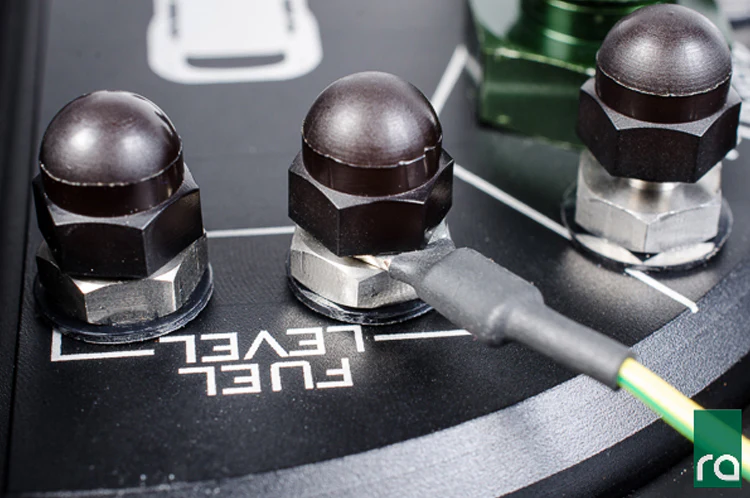

These hermetically sealed bulkhead studs are great for passing high current through a wall or panel. All that is required is a drilled hole. See dimensional requirements below.
Vehicle Fitment:
Universal Application
Dimensional Requirements:
The below dimensional requirements MUST be met in order for the studs to be used:
ā¢ Drilled Hole Diameter: 0.220"-0.234" (15/64 drill)
ā¢ Material Thickness: 0.262"-0.322"
Full Description:

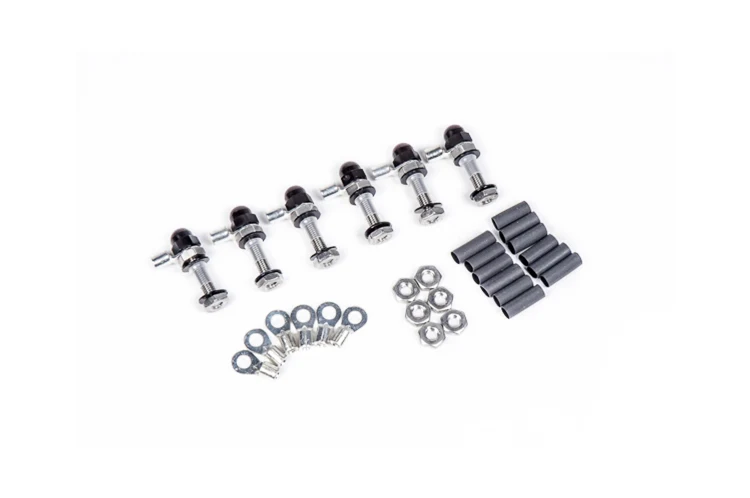

This kit includes 6 stud kits. Each electrical conductive stud is custom CNC machined from 304 stainless steel. A special insulating sleeve is included preventing panel conduction and galvanic corrosion. Each ring terminal accepts 10-12 AWG wire. The nylon acorn nut and heat shrink insulates the exposed areas from accidental shorts. Each stud includes 2 top locking nuts for a reliable connection.
The kit is compatible with all fuel types including gasoline, diesel, ethanol, methanol, E85, etc. Studs, special nuts, ring terminals, nylon acorn nuts, washers and heat shrinking are included.
