Xona X2B Standard Rotation Turbo 550-1150HP (XRC7269S)

Xona X2B Standard Rotation Turbo 550-1150HP (XRC7269S)

Xona Rotor X2B standard rotation ball bearing turbo is rated for 550-1150HP. Available as just the super core only or with your choice of turbine housing. Please note, these turbos are built to order, please allow 2-8 weeks for assembly.

Vehicle Fitment:
Universal Application

More from Xona Rotor:
Introducing the XRC7269S which has Uprated Speed and Flow of what was previously named XR10569S

    The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

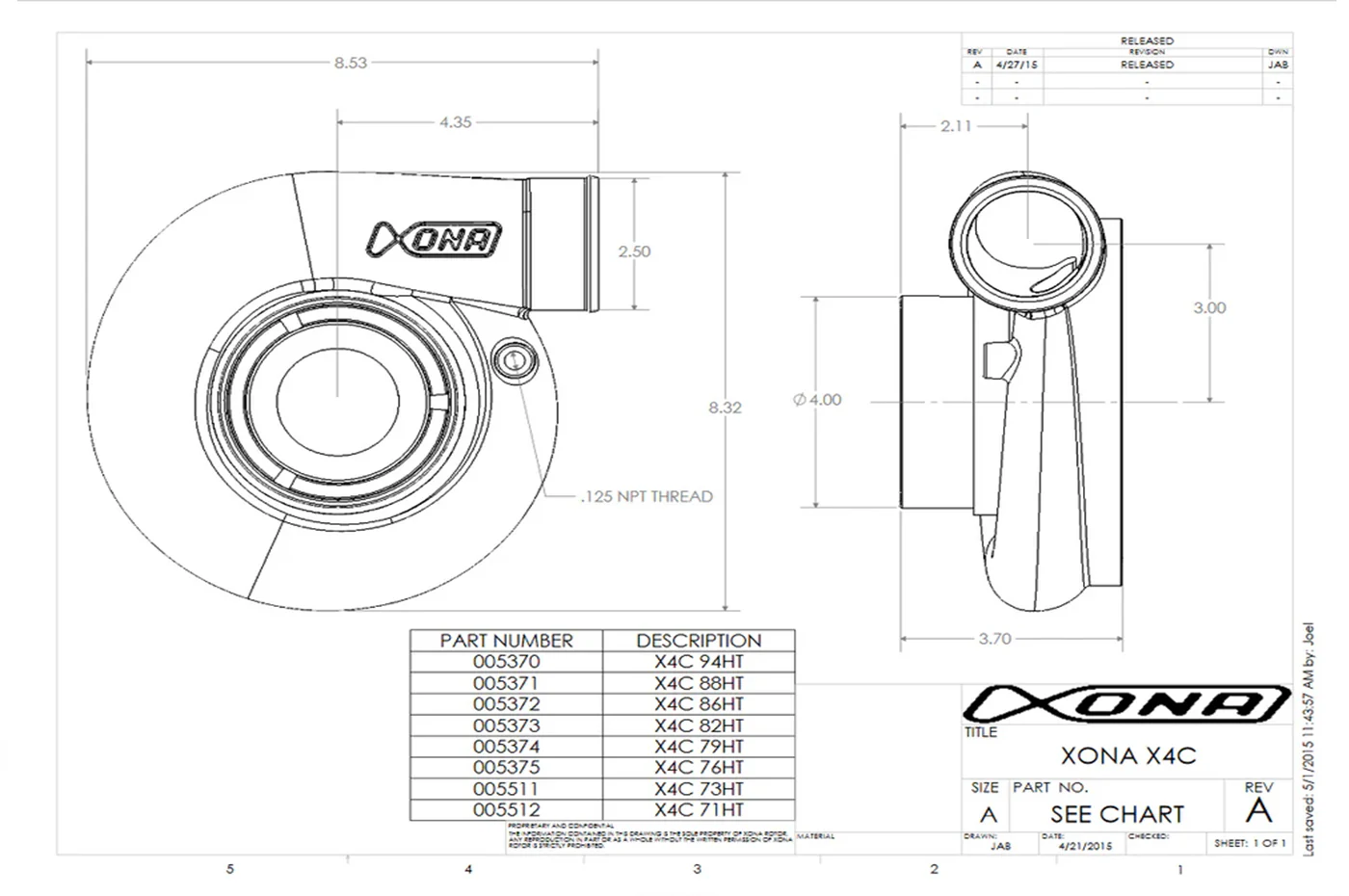

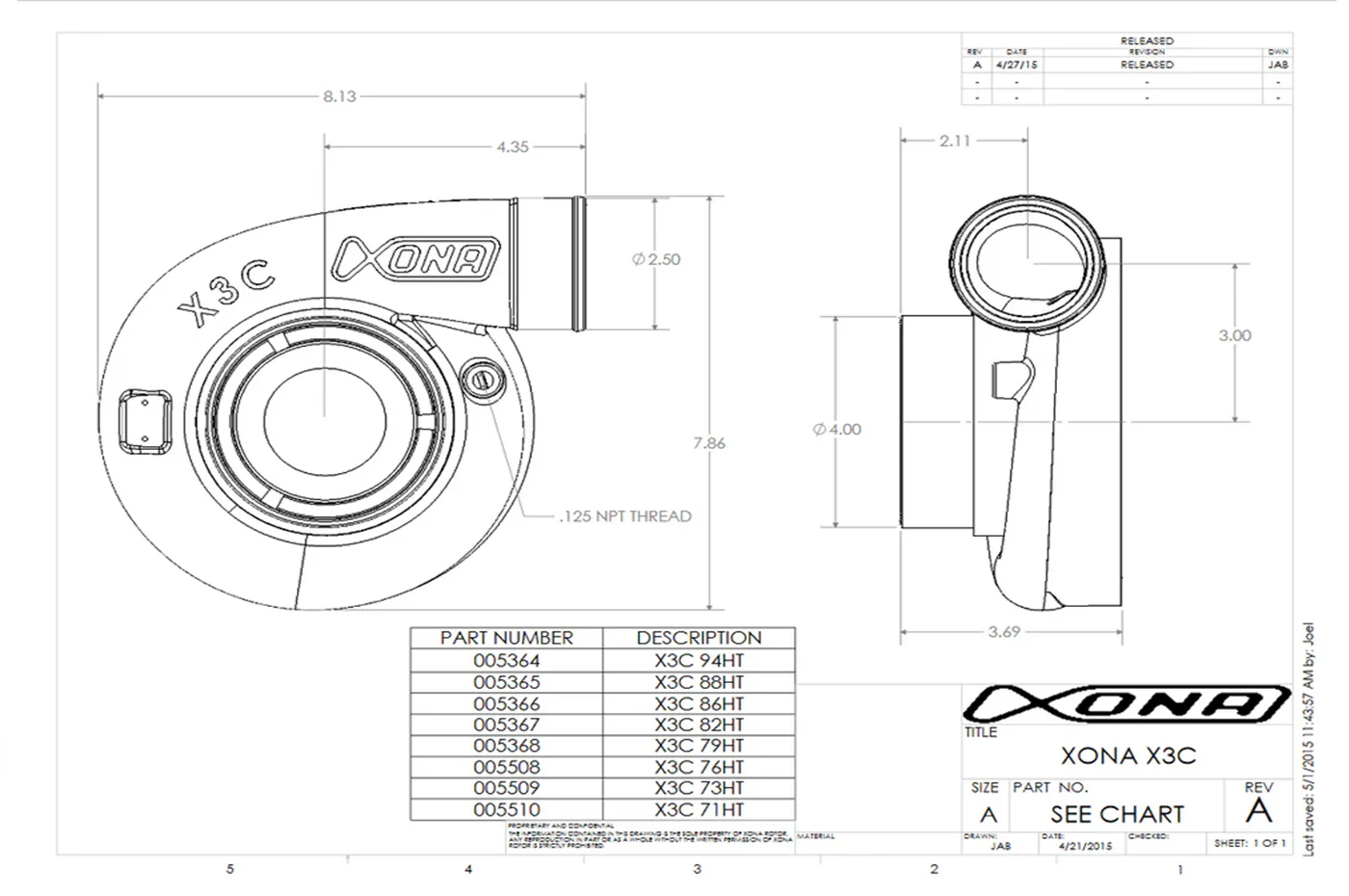

    This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.

    Features:
    • Compressor wheel - 72mm Inducer / 99mm Exducer.
    • Turbine Outlet - 69mm
    • 119lb/Minute Flow Rating
    • 550-1150HP Applications
    • Variable preload angular contact bearings
    • Twin gas ring seals at the compressor and turbine
    • High strength, lightweight stainless steel center housing
    • Full hydraulic damping of the rotating assembly
    • Integrated oil contaminate filter
    • M62 race material allows higher temperature operation
    • Metallic bearing cages

    Purchase Includes:
    Super core only or with your choice of turbine housing.

    Shipping Times:
    Please note, these turbos are built to order, please allow 2-8 weeks for assembly.

    Fittings Guide for X2B Frame (Standard and Reverse):
    • Oil Inlet: Unrestricted Oil Inlet Fitting 7/16-24 to -4AN for all universal fit Xona Rotor turbochargers.
    • Coolant Ports: Gen1 (machined stainless) M14x1.5
    • Coolant Ports: Gen2 (lightweight cast stainless, current production) M10x1.0
    • Drain: GT35 Style Drain 1.5" bolt spacing M8x1.25 bolts. Anything made specifically for 35R fitment will fit a Xona universal fit turbocharger, -10an drain preferred. We recommend the STM -10AN Turbo Oil Drain Fitting (ODF-GT) and STM Turbo Oil Drain Fitting Bolt Kit
    • Boost Reference: port on the compressor housing is 1/8" NPT.
